3.6 x 2.4m Pent Shed

Nice Shed Door

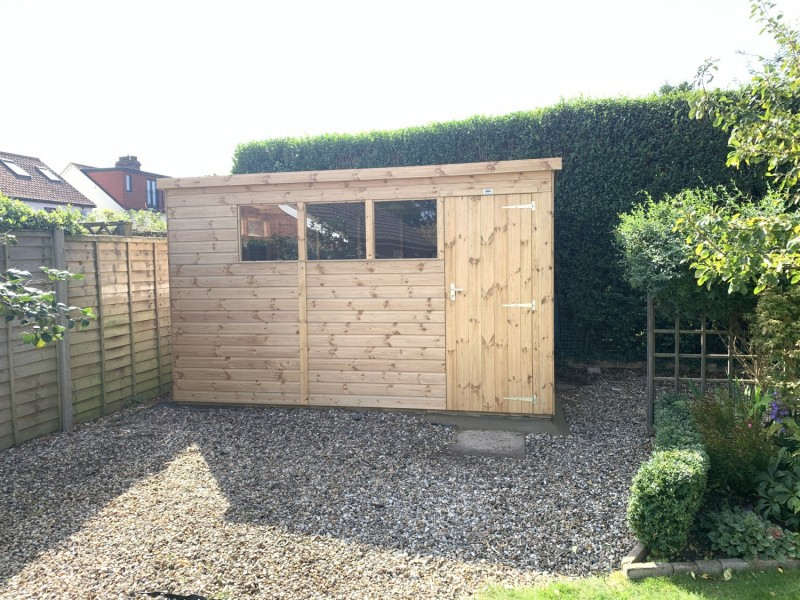

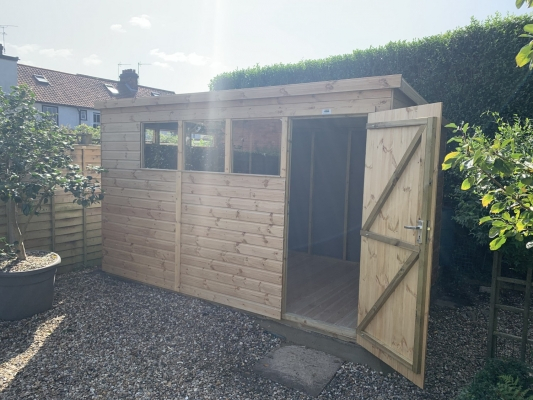

In this project we took down and disposed of the old shed which was about 3m x 2.4m (approximately 10' x 8'). We then designed and fabricated it's replacement,  a larger 3.6m x 2.4m (approximate 12' x 8') pent style shed. We also took up the old base, as the paving slabs were very uneven, and relayed their old slabs on a suitable foundation of compacted hardcore with sand and cement. This new shed construction was ex75mm x 50mm frame-work with ex125mm x 19mm ship-lap boards. It had 3 fixed windows to the front and a standard single door which was fitted with a handle, lock and key and also had security fittings. The shed also had 3 extra windows in the side wall which were pillow box style and positioned high up to allow light but also allow plenty of space for storage. It has a TGV floor and a roof which was finished with a single layer torch on felt. The shed was finished off with a gutter and water butt to control water run-off and allow for storage of rain water.





Click to enlarge....
